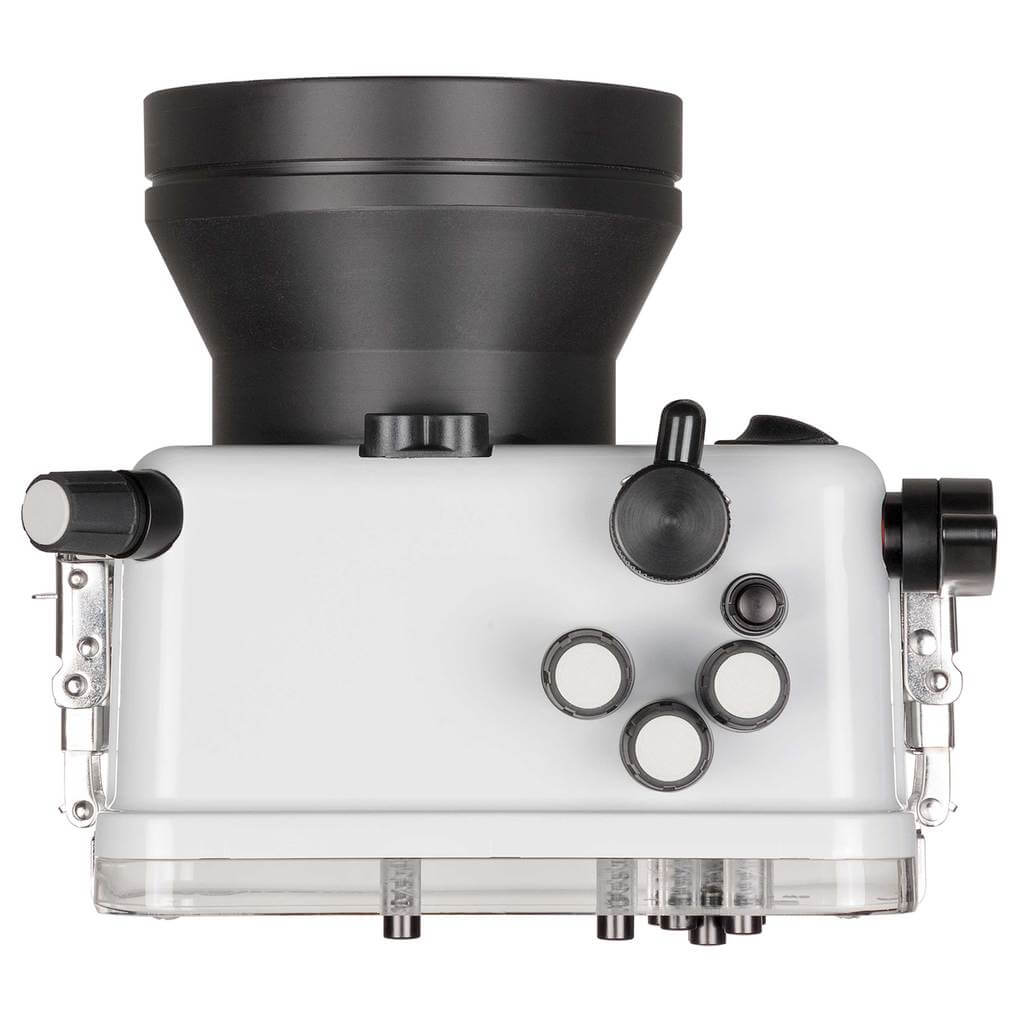

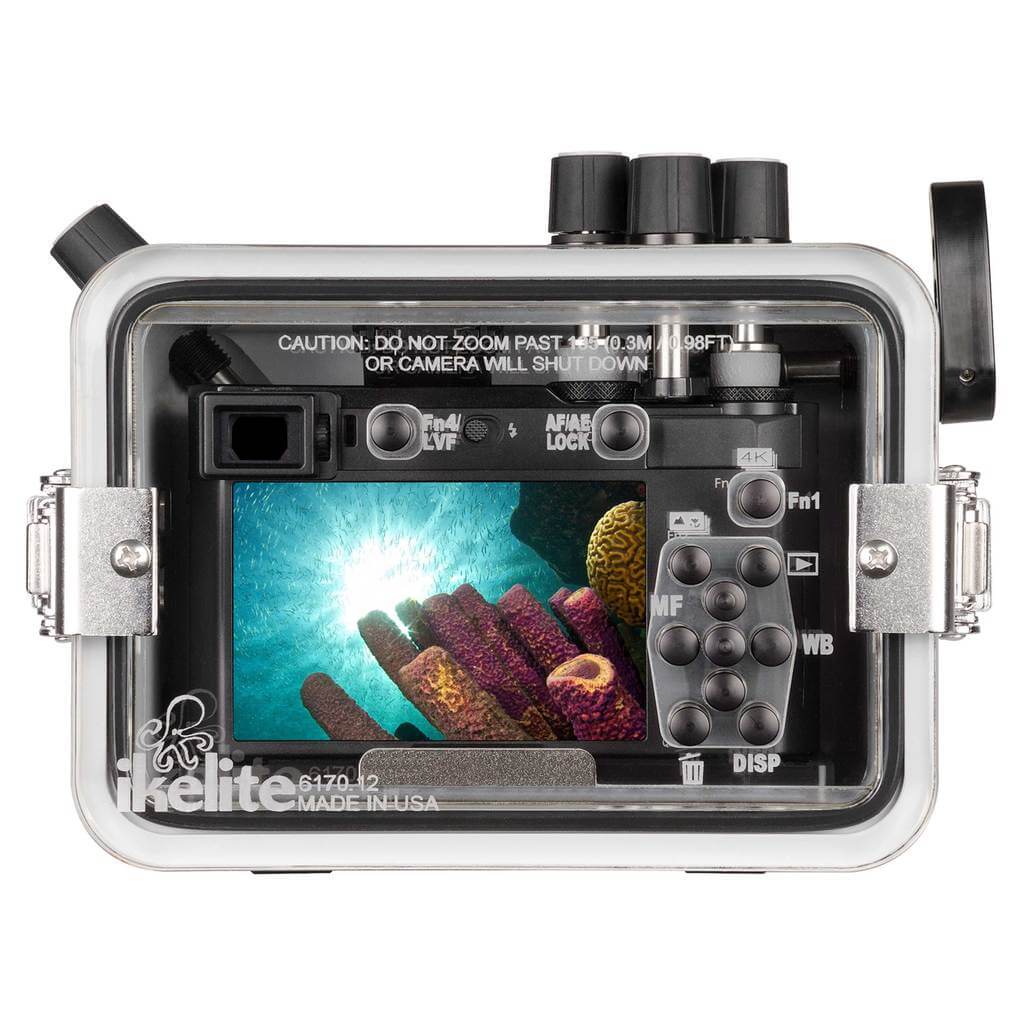

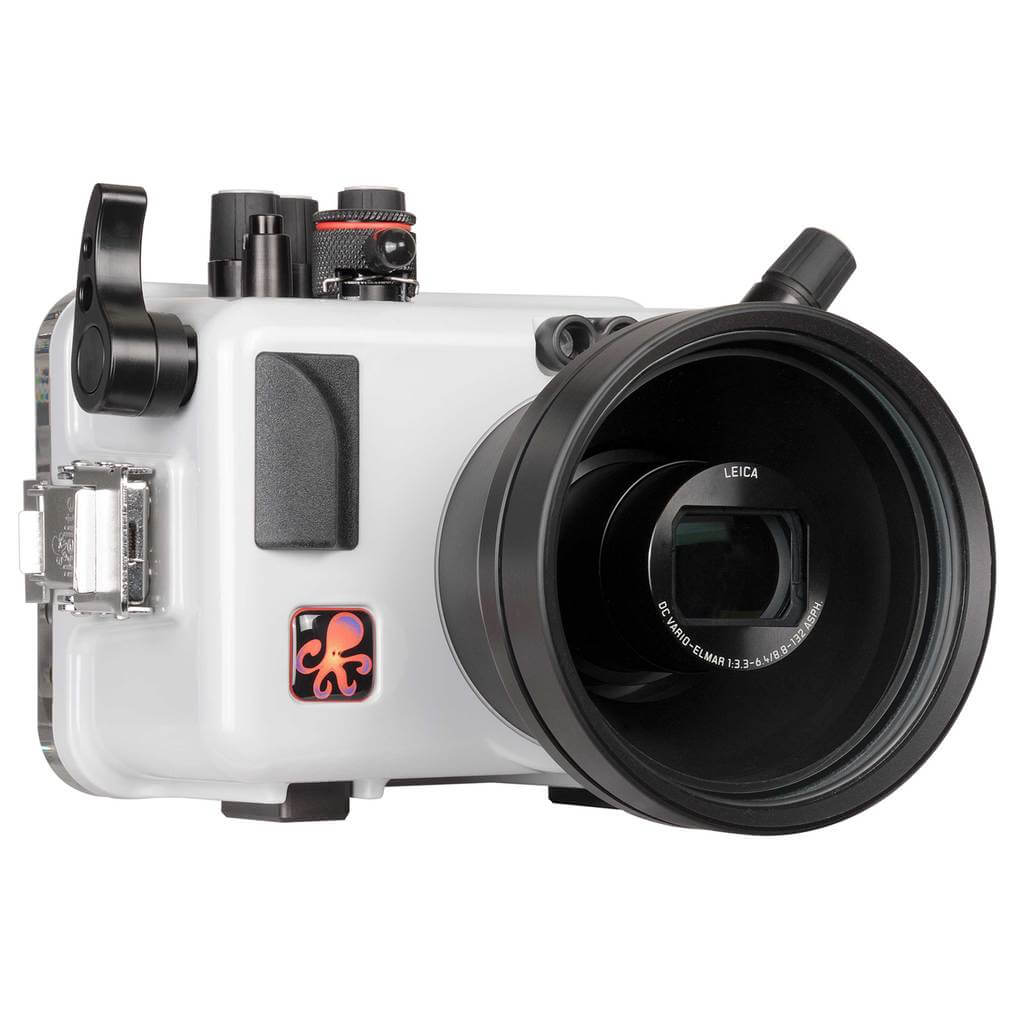

Ikelite Underwater Housing Panasonic TZ200 TZ202 TZ220

A full-featured and durable underwater housing for Panasonic Lumix DC-ZS200, DC-TZ200, DC-TZ202 and DC-TZ220 digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water. The zoom range of this camera is limited while inside of the housing in order to provide the best underwater imaging possible. The camera cannot be zoomed beyond 135mm equivalent inside of the housing. The Panasonic DC-ZS200 (DC-TZ200) updates the popular ZS100 model with a slightly and much longer zoom lens. The wider field of view is great for underwater photography, while the longer zoom reach is desirable for land-based travel photos. A 20MP CMOS sensor, 4K video capture, 5-axis image stabilization, and customizable control set make it a good all-around choice for underwater photography and world travel. Ergonomics and handling This compact and lightweight housing allow you to operate your Panasonic Lumix camera up to depths of 60m. It is designed and built in the USA by experienced divers with a commitment to providing top quality and value. Large, easy-to-reach controls are provided for all camera functions. Soft-touch knobs are easy to grip with or without gloves on and provide quick access to important controls including front and rear dials and the mode control. Rear controls are marked with easy-to-see laser engraved symbols which never fade or fall off. A trigger-type shutter lever control is designed for optimal sensitivity and a natural motion when shooting underwater. The standard control hugs the side of the housing for comfortable use when hand-holding. The shutter trigger may be easily extended using the optional Shutter Trigger Extension # 4077.95 for more comfortable reach when using a handle grip. The front-loading camera mounting system makes installation and removal a breeze. The camera mounting plate allows ready access to the battery and memory card and features a standard 1/4-20 mounting point for attachment to a tripod topside. Wide-angle and macro close-up The optional WD-4 Wide Angle Dome # 6430.4 provides a wider angle of view underwater without the edge distortion, heaviness, or difficult attachment typically associated with an external wide-angle lens. The WD-4 is a 0.75x magnification factor and simply slides on and off of the housing's lens port. A press-fit Macro Adapter # 9306.78 is available for the attachment of 67mm threaded accessory macro lenses. We recommend a macro lens that is designed for underwater use like those from Epoque, INON, Subsee, Nauticam, and other manufacturers. The adapter should not be used with 67mm threaded wide-angle lenses. The wide-angle lens would be too far away from the camera's lens to provide an improved image. Accessory mounting Two 1/4-20 threaded mounting points are included on the bottom of the housing for the attachment of a tray and handle system. Handles provide improved ergonomics underwater and are the foundation for your lighting mounts. Light is absorbed as it travels through even short distances underwater, making colours appear dull or monochromatic. To preserve the natural colours of your subject, it's important to stay within arm's reach—no more than 1m away. There is a simple rule that brighter is better underwater. A high-quality lighting system can produce magazine quality results with almost any compact camera system. Colour filters Enhanced colour correction and clarity can be achieved by adding a colour filter or external light. The lens port of the housing accepts Ikelite 3" diameter colour filters, which are available in two formulas: Tropical Blue Water # 6441.46 and Green Water # 6441.86. A colour filter reduces the amount of light that reaches the camera's sensor, so they are most effective in sunny conditions up to about 15m (80 feet). The absolute maximum effectiveness is 24m in ideal conditions of full sun and visibility of 30+m (100+ feet). We also offer a Yellow Barrier Filter # 6441.16 for shooting fluorescence photography. Flash and constant on lights A flash or constant-on light is necessary for close-up, night dives, and deep depths. An external light also brings out more colours in sunny conditions. External lights are typically not used in conjunction with colour filters, as the combination will result in tones that are too red or too purple. The location of the camera's flash in relation to the lens makes it unusable for lighting your subject underwater. However, the camera's flash may be used to trigger an external strobe. Two ports are provided for the connection of up to two fibre optically triggered underwater strobes. Alternatively, a bright constant-on video light can be used. A constant-on light is not as bright as a strobe flash. Constant-on lights do provide added versatility because they can be used for focus assist and for improved colours when shooting video. Vacuum testing A spare 1/2-20 threaded Accessory Port on the side of the housing is the perfect location for the installation of an optional vacuum valve. The Vacuum Kit # 47012 allows you to pull a vacuum on the housing to simulate pressure at depth and check for leaks prior to entering the water. Durability and corrosion-free performance Ikelite's ABS-PC blend provides strength and corrosion-free performance year after year with minimal maintenance. The specially formulated colour deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light grey colour provides superior contrast for an enhanced view of the camera, LCD screen, and o-ring seal. The unique rear seal design prevents accidental twisting or stretching of the o-ring for simple and confident assembly. Ikelite have eliminated the need for an o-ring groove or channel which can trap sand, dirt, or debris. Two double-passivated stainless steel locking lid snaps are simple to use and virtually unbreakable. The clear back allows you to see the o-ring form a solid, watertight seal as it closes. Ikelite products are designed, built and tested in the USA. Ikelite uses locally sourced, top-grade materials. Ikelite housings are built by hand and individually tested for fit and function. Every unit is water pressure tested to 60m (200 feet). Ikelite backs its products with over 50 years of experience and the best reputation for service within the dive industry. Compatibility Differences in lens and control placement prevent cameras other than the Panasonic Lumix DC-ZS200, DC-TZ200, or DC-TZ202, DC-TZ220 from being used in this housing. We are not aware of any other camera models which may be used in or adapted to this particular housing. Specifications

• 60m (200 ft) depth rating
• Controls for all camera functions except Diopter Adjustment Dial and Flash open lever; Flash may be opened prior to installing a camera in the housing
• Near neutral buoyancy in freshwater
• 1/4-20 thread tray mounting with 76mm (3") spacing
• 1270 g (2.8 lb)
•  157 x 130 x 173 mm (6.2 x 5.1 x 6.8")
• 3.9" diameter glass lens port allows an effective zoom range of 24-135mm
• 2 year limited warranty

In the Box

• Housing
• O-Ring # 0109 (installed)
• Port cover # 0200.08 (installed)
• Silicone lubricant # 5020
• 1 year limited warranty

Optional Accessories

• Spare O-Ring Seal # 0109
• WD-4 Wide Angle Dome # 6430.4
• Macro Adapter for 3.9" Diameter Ports # 9306.82
• UR/PRO Colour Filter for Tropical Blue Water # 6441.46
• UR/PRO Colour Filter for Green Water # 6441.86
• Yellow Fluorescence Filter # 6441.16
• Action Tray with Left-Hand Handle # 2605.04
• Action Tray Extension with Right Handle # 2605.05
• Shutter Trigger Extension # 4077.93
• Vacuum Kit for 1/2" Accessory Port # 47012
• Fibre Optic Cord # 4501
